How to Mirror Your J1M PLUS Indoor Bike Screen

This guide will help you properly set up screen casting for your J1M PLUS indoor bike. Please follow the steps below carefully to ensure a stable connection and successful screen projection.

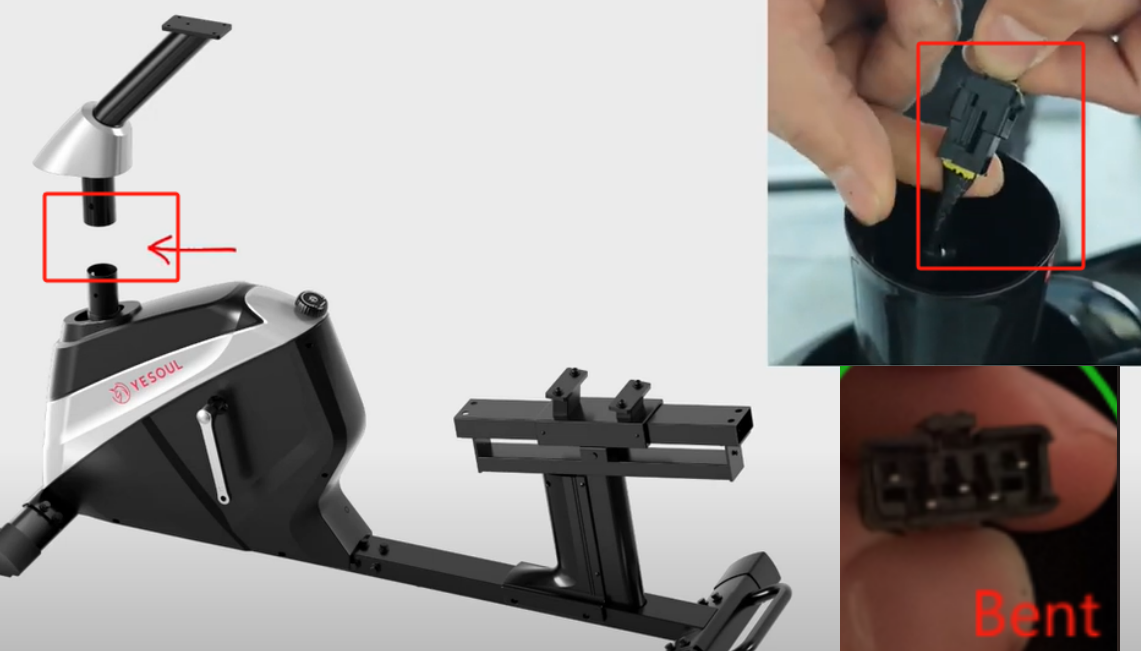

1. Connect All Cables Properly

Before starting, please make sure:

• The cables that are manually connected in the three locations shown in the user manual are all fully inserted.
• All connectors are inserted securely with no looseness
• Each cable is installed in the correct port according to the instruction manual

👉 Proper wiring is essential for the screen and system to function correctly.

2. Check If Screen Data Is Working Normally

After connecting the cables:

• Turn on the bike and screen
• Check whether all workout data is updating correctly, including:
  • Speed
  • Time
  • Resistance level
  • Other workout metrics (if displayed)

👉 If all data changes normally, the device is ready for the next step.

3. Download YESOUL FITNESS App and Pair Your Device

Once the screen data is working correctly, please proceed with app setup:

Steps:

1. Download and open the YESOUL FITNESS App
2. Log in to your account
3. Tap the “+” icon on the home page
4. Select Add Device or choose a workout route
5. Follow the on-screen instructions to complete pairing

Important Notes:

• Make sure Bluetooth is enabled on your phone
• Ensure Bluetooth is disconnected from other devices
• If pairing fails, disconnect other Bluetooth devices and try again

4. Confirm “Authorized” Status and Start Casting

Before casting, please check the screen status:

👉 The top-right corner of the screen must show “Authorized”

Once confirmed:

1. Plug in the casting cable (Type-C / HDMI adapter cable)
2. Wait for the system to recognize the device
3. Your phone screen will automatically be mirrored to the bike display

5. Compatibility Notice (Very Important)

To ensure successful casting, please note:

• Your phone must support DP (DisplayPort) video output for wired casting
• Without DP support, wired screen casting will not work

Not Supported Devices:

The following devices currently do NOT support casting:

• iPhone Air series
• iPhone models with an “e” suffix

6. If the Issue Persists

If the issue persists after following the steps above, please submit a service ticket to get support from our customer service team. You can submit your request here: Submit a service ticket

When submitting a ticket, please provide:

• Your phone model.

• A detailed video showing:

  • How the cable is connected,

  • App operation,

  • Any differences from the steps above.

 You can upload the video to Google Drive, Dropbox, or another file-sharing platform, and share the link with us.
