Machine Adjustment – Left-Button Screen: Disabling BikeOSD

Before starting, please refer to the operation video for a visual guide:
 Disabling BikeOSD – Operation Video

Step 1 – Connect the Display Dongle and Start Casting

• Properly connect the display dongle to the bike or screen.

• Ensure the device is powered on.

• Start the screen casting function to display the normal interface, preparing for subsequent settings.

Step 2 – Enter the System Menu

• Press the Confirm button on the screen or joystick to access the system menu.

• Once the menu appears, all available system settings will be displayed.

Step 3 – Enter Settings

• Move the joystick down to select Settings.

• Move the joystick right to enter the detailed settings menu, showing all adjustable functions.

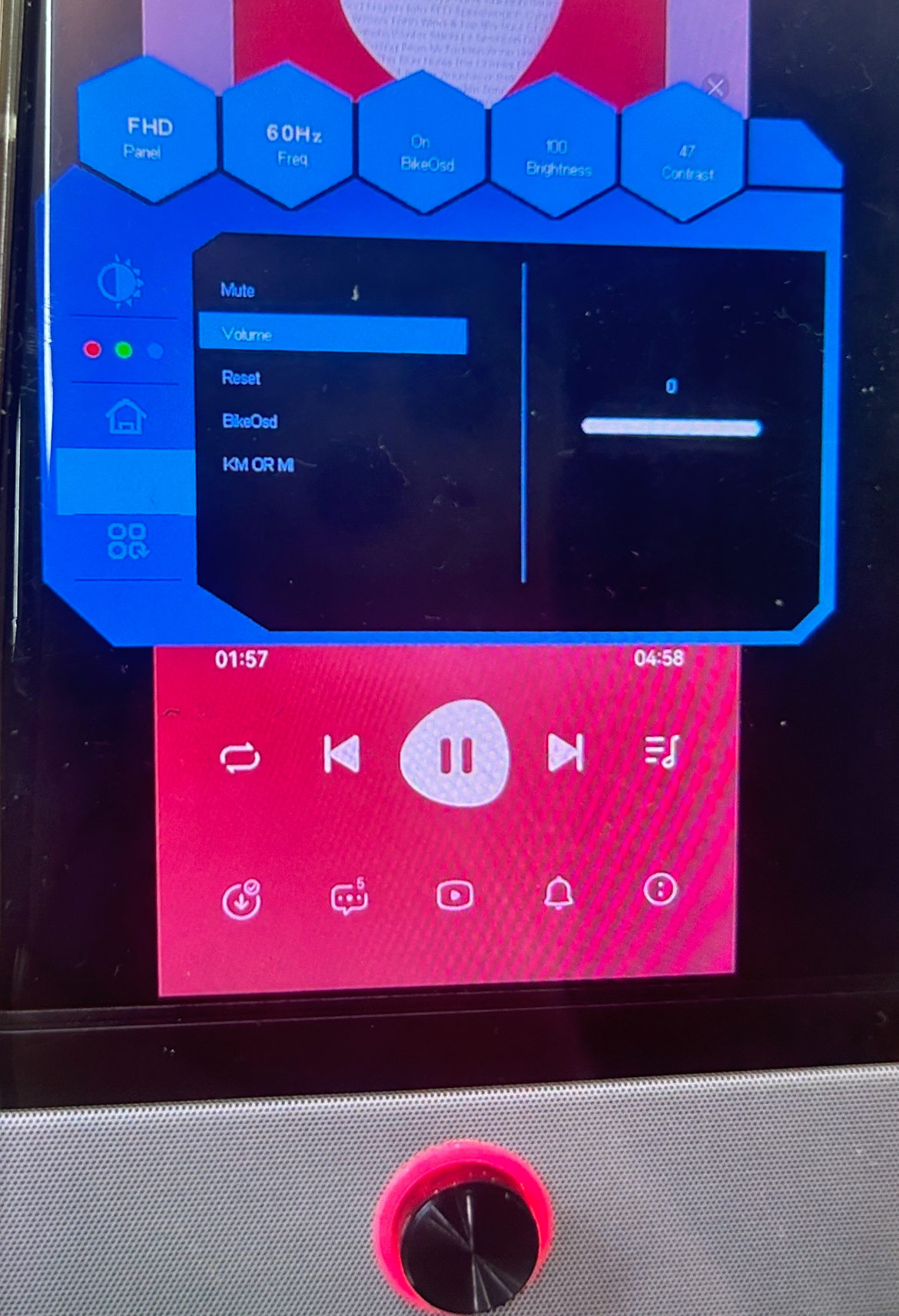

Step 4 – Enter BikeOsd Settings

• Move the joystick down to find BikeOsd.

• Move the joystick right to enter the BikeOsd settings interface.

• The current status and available modes will be displayed.

Step 5 – Disable BikeOsd

• Select OFF in the BikeOsd settings interface.

• Press the Confirm button to apply the setting.

• The screen will display a confirmation that BikeOsd has been disabled.

• Once disabled, the screen will no longer show BikeOsd-related data or interface.

Step 6 – Exit the System Menu

• After adjustment, move the joystick left three times consecutively to exit the system menu and return to the main interface.

• This ensures all settings are saved and the screen returns to normal casting or bike operation.

Tips

• Avoid rapid consecutive joystick movements to prevent accidental selection of other functions.

• If the setting does not take effect, re-enter the menu and repeat the steps.
